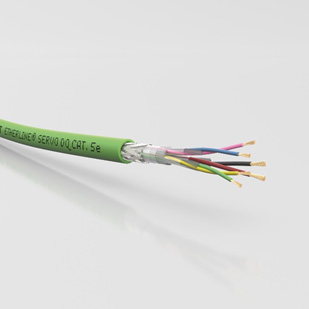

The ETHERLINE SERVO DQ FD P Cat.5e is a servo feedback cable. It is adapted for the open SIEMENS DRIVE-CLiQ® system interface for use in SIEMENS SINAMICS-S120 drive systems. Thanks to copper braiding screening with a high level of coverage of 85 percent, it is suitable for environments where EMC is particularly critical. Its cable design with a robust PUR outer sheath enables highly flexible use in moving machine parts and in cable chains. Of course, the cable is resistant to UV light, oil and chemical substances and is therefore well equipped for harsh and damp industrial environments. Attractive for export-based companies: The ETHERLINE SERVO DQ FD P Cat.5e has all the necessary certifications for use on the North American market.
ETHERLINE® ACCESS PNF04T, PNF08T, PNF16T are the smallest PROFINET® switches on the market. They fit into even small machine control cabinets. To put it in context, the version with 16 RJ45 ports is smaller than a version with eight ports from a competitor. The switches meet the requirements for Conformance Class B and they are all managed and can be configured via a web interface.
The ETHERLINE® ACCESS M08T02SFP and M08T02GSFP are ideal when high transmission rates are required over long distances. In addition to the eight RJ45 ports, the two ultracompact managed switches each have two SFP ports for connecting fibre optic cables, with the second for fast Gigabit Ethernet. LAPP also offers appropriate SFP standard modules for converting the light signal into electrical signals – for 100 Mbit/s or 1 Gbit/s and for singlemode or multi-mode transmission. Anyone who can do without fibre optic cables should consider the ETHERLINE® ACCESS U08GT, an unmanaged switch for Gigabit speeds.
The ETHERLINE® ACCESS U04TP01T has four RJ45 ports with Power over Ethernet and one port for Fast Ethernet. In addition to data, it sends electrical energy through the cable to supply devices such as cameras for quality monitoring or Wi-Fi access points. These switches are often used near machines where they are exposed to extreme temperatures. For this reason, like all the switches mentioned above, this model has been designed for temperatures from -40°C to +75°C.
